BMW 3: Connections
The connections at the Electrical Machine Electronics can be divided into four categories:
- Low-voltage connections
- High-voltage connections
- Connection for potential compensation line
- Connections for coolant lines.

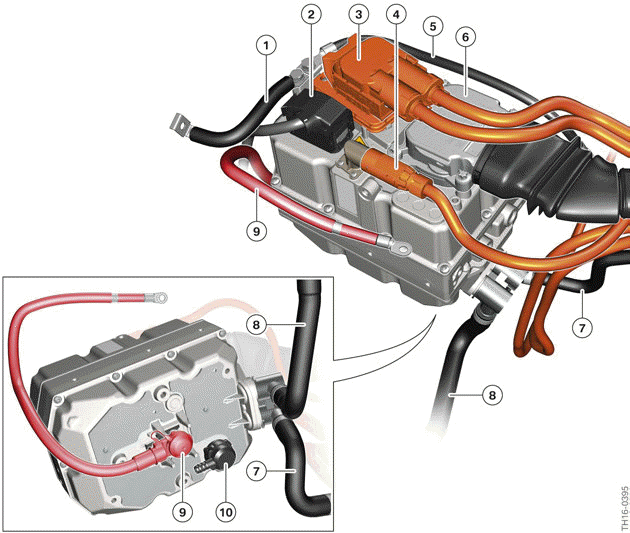

Connections of the Electrical Machine Electronics with lines
- Connection for potential compensation line
- Low-voltage connector
- High-voltage cable (DC) to the high-voltage battery unit
- High-voltage connection to convenience charging electronics
- Output, DC/DC converter -12 V
- High-voltage cable (AC) to the electrical machine
- Coolant feed line
- Coolant return line
- Output, DC/DC converter +12 V
- Ventilation
- Low-voltage connections
- High-voltage connections
- High-voltage cables
- Removing the flat high-voltage connector
- Removing the round high-voltage connector
- Connection for potential compensation lines
