BMW 3: Overview

Button in the vehicle

Driver assistance systems

Park assistance button

Ultrasound sensors

Driver assistance systems

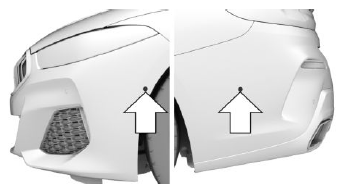

With the four side ultrasound sensors, arrows, and the ultrasound sensors in the bumpers, the parking spaces are measured and the distances to obstacles determined.

Functional requirements

Ultrasound sensors

Ensure full functionality:

  • Do not cover sensors, for instance with stickers.
  • Keep the sensors clean and unobstructed.

For measuring parking spaces

  • Maximum speed while driving forward approx. 22 mph/35 km/h.
  • Maximum distance to row of parked vehicles: 5 ft/1.5 m.

Suitable parking space

General information:

  • Gap behind an object that has a min. length of 1.7 ft/0.5 m.
  • Gap between two objects with a minimum length of approx. 1.7 ft/0.5 m.

Parallel parking to the road:

  • Min. length of gap between two objects: your vehicle's length plus approx. 2.6 ft/0.8 m.
  • Minimum depth: approx. 5 ft/1.5 m.

Diagonal parking:

  • Minimum width of the gap: own vehicle's width plus approx. 2.3 ft/0.7 m.
  • Minimum depth: your vehicle's length.

    The depth of diagonal parking spaces must be estimated by the driver. Due to technical limitations, the system is only able to approximate the depth of diagonal parking spaces.

For parking

  • Doors and trunk lid are closed.

Steptronic transmission:

  • Driver's safety belt is fastened.

Switching on and activating

Switching on with the button

Press the park assistance button.

The LED lights up.

The current status of the parking space search is indicated on the Control Display.

Parking assistant is activated automatically.

Switching on with reverse gear

Shift into reverse.

The current status of the parking space search is indicated on the Control Display.

If necessary, activate: "Autom. Parking"

Switching on via iDrive

Display of the rearview camera or PDC view must be active.

1. Move the Controller to the right.

2. Activate the parking assistant on the Control Display: "Autom. Parking"
