BMW 3: Programmable memory buttons
General information
The iDrive functions can be stored on the programmable
memory buttons and called up directly,
for instance radio stations, navigation destinations,
phone numbers and menu entries or
pages in the Integrated Owner's Manual.
Settings are stored for the driver profile currently
used.

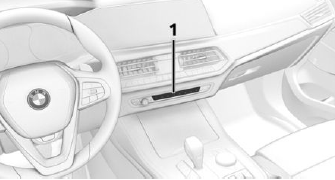

Overview
.png)
- Programmable memory buttons
Storing a function
A function can be stored on a programmable
memory button. A button with a stored function
can be overwritten with another function.
1. Select function via iDrive.
2.
Press and hold the desired
button
until the displayed bar on the Control Display
has loaded completely.
Executing a function
Press the button.
The function will work immediately. This means,
for instance that the number is dialed when a
phone number is selected.
Displaying the key assignment
Touch buttons with finger. Do not wear gloves or
use objects.
The button assignment is displayed at the top
edge of screen.
Deleting all button assignments
All button assignments can be deleted.
1. Press and hold buttons 1 and 8 at the same
time.
2. "OK".
