BMW 3: System components

The front radar sensor (FRS) or the front radar sensor long range (FRSF) is needed to reliably detect the vehicles in front. Consequently, adaptive recuperation is only possible with the optional equipment Active Cruise Control with Stop&Go function (SA 5DF).

Adaptive recuperation can be implemented on different control units. Depending on the equipment specification, the function is integrated in the control unit optional equipment system SAS (with Driving Assistant Professional (SA 5AU)) or in the DSC control unit (Active Cruise Control with Stop&Go function (SA 5DF) ).

Adaptive recuperation

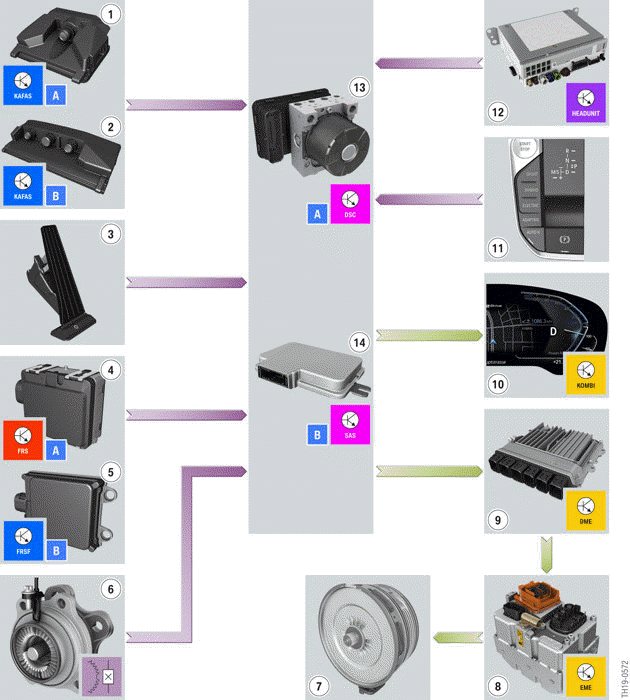

G20 PHEV, input/output, adaptive recuperation

  1. Used in vehicles without the optional equipment Driving Assistant Professional (SA 5AU)
  2. Used in vehicles with the optional equipment Driving Assistant Professional (SA 5AU)
  1. KAFAS-Mid-Camera
  2. KAFAS-High-Camera
  3. Accelerator pedal
  4. Front radar sensor (FRS)
  5. Front radar sensor long range (FRSF)
  6. Wheel speed sensors
  7. Electric motor
  8. Electric Motor Electronics (EME)
  9. Digital Motor Electronics (DME)
  10. Instrument cluster (KOMBI)
  11. Driving Experience Control (FES)
  12. Head Unit High 3
  13. Dynamic Stability Control (DSC)
  14. Optional equipment system (SAS)

Operation of the brake pedal is recorded and processed directly by the DSC unit.

The Digital Motor Electronics (DME) assumes the central coordination between the setpoint torque specifications which are output by the different control units. The higher torque request is then forwarded to the EME for implementation. The DME also stores the driving modes in which the function is available and not available.
