BMW 3: Engine identification

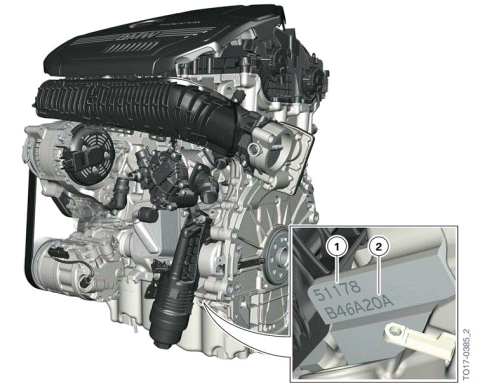

B46TU engine
Engine identification - transverse mounted shown

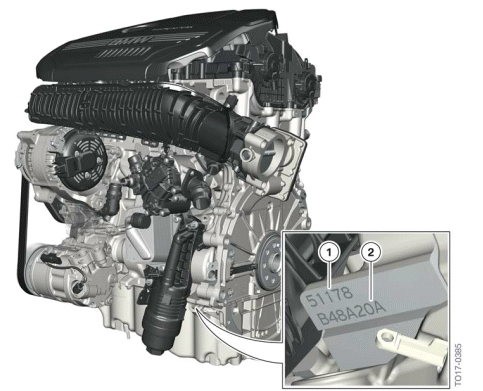

B48TU engine
Engine identification - transverse mounted shown
- Engine number
- Engine identification
The 7-digit engine identification is located on the crankcase in the area of the mounting for the crankshaft alignment pin. The first 6 digits of the engine identification code. Only the seventh digit is different. The seventh digit of the engine identification code is the test number of the type approval certification.
The 4th digit in the engine identification shown above is an A, this represents its a transverse mounted engine that will be installed in the F39 M35i. The G20 and G29 will have a B in the 4th position that represents the engine is longitudinal mounted.
The consecutive engine number is embossed above the engine identification. Using these two numbers the engine can be clearly identified by the manufacturer.

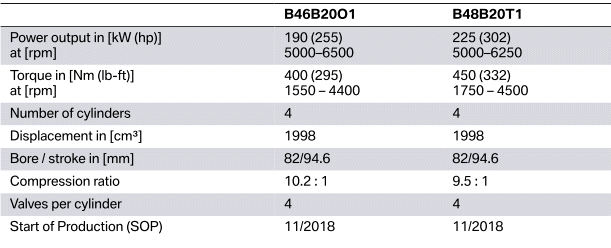

Technical data
The B46B20O1 and B46B20T1 engine is described:

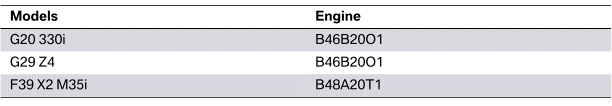

Model overview
The table below provides an overview of the models in which the new B46TU and B48TU engine is used.
