BMW 3: Replacing the battery

1. Remove the integrated key from the vehicle key.

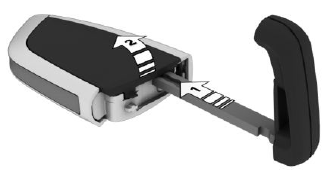

2. Place the integrated key underneath the battery compartment cover, arrow 1, and lift the cover with a lever movement of the integrated key, arrow 2.

Opening and closing

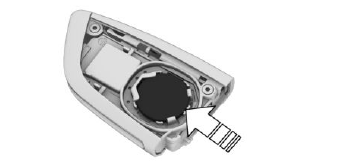

3. Push battery in the direction of the arrow using a pointed object and lift it out.

Opening and closing

4. Insert a type CR 2032 battery with the positive side facing up.

5. Press the cover closed.

6. Push the integrated key into the vehicle key until the integrated key engages.

Have old batteries disposed of by a dealer's service center or another qualified service center or repair shop or take them to a collection point.

Additional vehicle keys

Additional vehicle keys are available from a service center or another qualified service center or repair shop.

Loss of vehicle keys

A lost vehicle key can be blocked and replaced by a dealer's service center or another qualified service center or repair shop.

If the lost vehicle key has an assigned driver profile, the connection to this vehicle key must be deleted. A new vehicle key can then be assigned to the driver profile.
