BMW 3: Designation and identification

Designation of electrical machines

The electrical machine designation is used in the technical documentation for clear identification of the electrical machine. However, the identification of the electrical machine is relevant for Service.

Identification of the electrical machine

The electrical machines have an identification to ensure clear identification and classification. This identification is also necessary for approval by government authorities. The identification of the electrical machines is equivalent to the identification of the combustion engines. The serial number of the electrical machine can be found under the electrical machine identification on the electrical machine. This consecutive number, in conjunction with the identification, permits clear identification of each individual electrical machine.

Designation and identification

Designation and identification

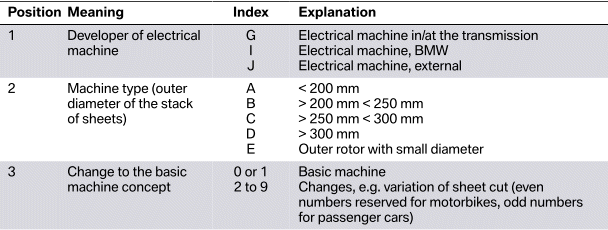

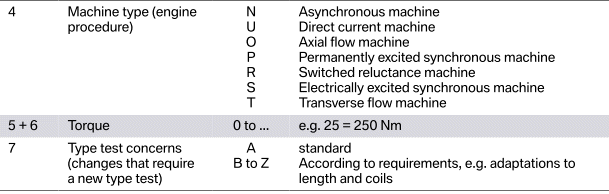

The identification of the electrical machine in a G20 PHEV is as follows: GC1P25A.

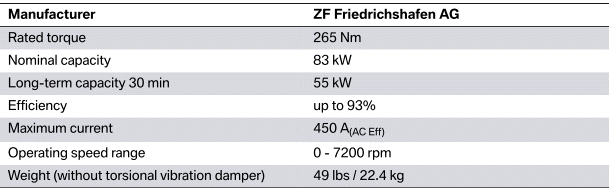

Technical data

Technical data

Installation location

Installation location

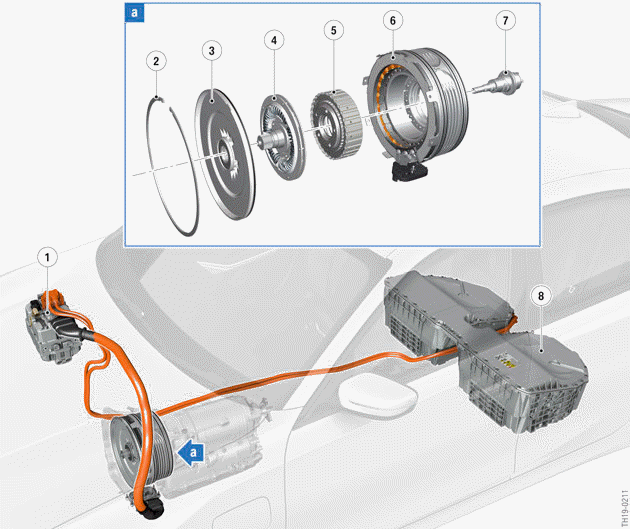

G20 PHEV electrical machine installation location

  1. Electric Motor Electronics (EME)
  2. Circlip
  3. Lid at electrical machine
  4. Additional torsional vibration damper
  5. Separation clutch
  6. Electric motor
  7. Hollow shaft
  8. High-voltage battery unit

The hybrid components are integrated as individual components in the transmission bell housing and assume the installation space of the hydraulic torque converter in the transmission housing.
