Permanent charging station

This version of the Electric Vehicle Supply Equipment must be installed permanently owing to its size and electrical requirements, e.g. at the house or in the customer's garage. Such a charging station can also be built at public places, e.g. car parks.

The installation, maintenance and repair of permanent charging stations can only be performed by suitably qualified electricians. Employees in BMW Service are not authorized to perform these tasks.

AC charging stations

The connection of the AC charging stations to the AC voltage network is achieved via two-phase supply. In comparison to the mobile solution, a maximum current level of 32 A or a maximum charging power of 7.4 kW is possible. These maximum values are dependent on the size of the wire cross- section used in the electrical installation at the installation site. The electrician configures the charging station during installation according to the wire cross-section so that the applicable maximum current level is transmitted to the vehicle using the pilot signal.

The charging electronics of the G20 PHEV generally only support charging at a maximum power of 3.7 kW. Charging at an excessive current level is avoided through communication via the pilot line and the proximity (charging plug detection) resistor.

The following graphics show an AC charging station and the appropriate connector on the charging cable:

General information on charging

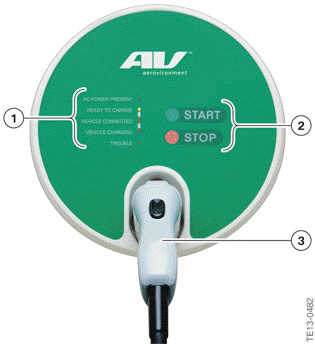

Example of a fixed charging station (Wallbox)

  1. Display of operating condition
  2. Start/Stop buttons for charge process
  3. Charge cable, stored in charger unit

General information on charging

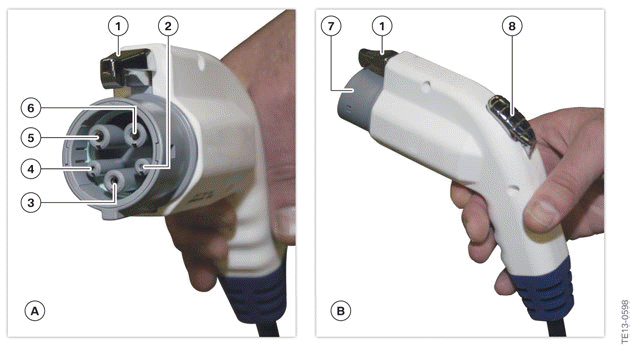

Connector of the charging cable for the connection to the vehicle (standardized i.a.w. IEC 62196-2: Type 2)

  1. View from the side of the electrical connection
  2. View from the side of the handle
  1. Mechanical locking
  2. Connection for pilot line
  3. Connection for protective earth/ground conductor
  4. Connection for proximity line
  5. Connection for phase L1
  6. Connection for neutral conductor (N)
  7. Mechanical guide/connector housing
  8. Button for mechanical unlocking of the connection before removal

AC charging stations from other manufacturers may differ from the version shown here.
