BMW 3: Interior mirror, manually dimmable
BMW 3 Series G20 (2018-2026) Owners Manual / Seats, mirrors, and steering wheel / Interior mirror, manually
dimmable
.png)

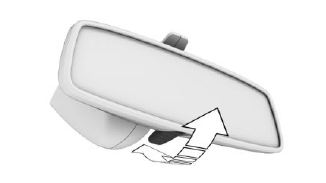

To reduce the blinding effect of the interior mirror, flip the lever forward.
Interior mirror, automatic dimming feature
General information
The interior mirror is dimmed automatically.

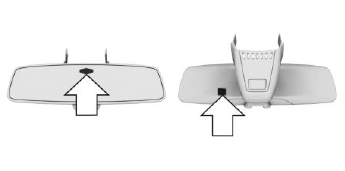

Photocells are used for control:
- In the mirror glass.
- On the back of the mirror.
Overview
.png)
Functional requirements
- Keep the photocells clean.
- Do not cover the area between the interior mirror and the windshield.
