Interior air quality
The air quality in the vehicle is improved by the following components:
- Emission tested passenger compartment.
- Microfilter.
- Air conditioning system to control the temperature, air flow and recirculated-air mode.
Depending on the equipment specification:
- Microfilter/activated-charcoal filter.
- Automatic recirculated-air control AUC.
- Parked-car ventilation.
Automatic climate control
Overview

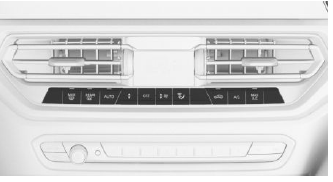

Buttons in the vehicle
.png)
Climate control functions
.png)
Temperature.
Climate control operation.
Maximum cooling.
AUTO program.
Recirculated-air mode.
Switching off.
Air distribution, manual.
Defrost and defog the
windshield.
Rear window defroster.
Seat heating.
Air flow, manual.
Some of the functions can also be used via voice, e.g., temperature.
